logic::GhostModel Class Reference

#include <GhostModel.h>

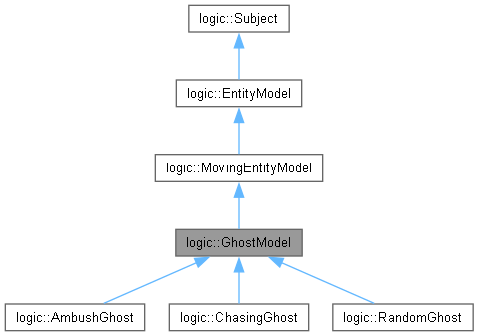

Inheritance diagram for logic::GhostModel:

Collaboration diagram for logic::GhostModel:

Public Member Functions
	GhostModel (float normalizedX, float normalizedY, float mapWidth, float mapHeight, double cooldown)
	Base class for Ghosts. Handles Ghost state and how that influences ghost behaviour.
	~GhostModel () override=default
GhostState	getState () const
	Returns the current state of the Ghost.
bool	isFrightened () const
	Returns whether the Ghost is currently frightened.
int	getGridSpawnX () const
	Returns the Grid mapped X coordinate of where the Ghost spawned.
int	getGridSpawnY () const
	Returns the Grid mapped Y coordinate of where the Ghost spawned.
void	setFrightened (bool frightened, const World &world)
	Allows the World to set toggle whether the Ghost is Frigthened or not.
void	pacmanCollides (World &world)
	Tells the Ghost it collided with Pacman and should handle this situation.
void	move (const World &world, float dt) override
	This function is to be called in the World update loop. The Ghost will act based on it's current State and possibly move.
void	respawn () override
	Tell the Ghost to respawn. It will go back to its spawnpoint and start in a GhostState::WAITING state again.
Public Member Functions inherited from logic::MovingEntityModel
	MovingEntityModel (float normalizedX, float normalizedY, float mapWidth, float mapHeight, float speed)
	Subclass of EntityModel to be used for any moving entity.
Moves	getDirection () const
	Get the direction the entity is currently moving in.
int	getGridX () const
int	getGridY () const
Public Member Functions inherited from logic::EntityModel
	EntityModel (float normalizedX, float normalizedY)
	Base class for entities.
	~EntityModel () override=default
float	getX () const
float	getY () const
Public Member Functions inherited from logic::Subject
virtual	~Subject ()=default
void	attach (const std::shared_ptr< Observer > &observer)
	Attaches an observer to this Subject.
void	notify (Events event)
	Call the Observer update function with the provided event.

Protected Member Functions
virtual Moves	decideNextMove (const World &world)=0
	This function must be overriden by any inheriting Ghost classes. It must return the best Move according to its attacking personality.
Protected Member Functions inherited from logic::MovingEntityModel
void	normalizeTarget ()
	Normalizes the grid coordinates and stores these values in as target coordinates. Moving entities strive towards normalized grid coordinates.

Additional Inherited Members
Protected Attributes inherited from logic::MovingEntityModel
float	mapWidth
float	mapHeight
float	spawnX
float	spawnY
int	gridY
int	gridX
float	targetX
float	targetY
Moves	direction = Moves::RIGHT
float	speed
Protected Attributes inherited from logic::EntityModel
float	x
float	y
Protected Attributes inherited from logic::Subject
std::list< std::weak_ptr< Observer > >	observers

Constructor & Destructor Documentation

GhostModel()

GhostModel::GhostModel ( float normalizedX, float normalizedY, float mapWidth, float mapHeight, double cooldown )

explicit

Base class for Ghosts. Handles Ghost state and how that influences ghost behaviour.

Uses GhostNavigator helper functions for Pathfinding and Path related decision-making.

Parameters

normalizedX	Normalized x spawn coordinate
normalizedY	Normalized y spawn coordinate
mapWidth	Map width (in tiles)
mapHeight	Map height (in tiles)
cooldown	Spawn cooldown before leaving enclosure

~GhostModel()

logic::GhostModel::~GhostModel ( )

overridedefault

Member Function Documentation

decideNextMove()

virtual Moves logic::GhostModel::decideNextMove ( const World & world )

protectedpure virtual

This function must be overriden by any inheriting Ghost classes. It must return the best Move according to its attacking personality.

Parameters

world

World

Returns

The best Move for this Ghost

getGridSpawnX()

int GhostModel::getGridSpawnX ( ) const

nodiscard

Returns the Grid mapped X coordinate of where the Ghost spawned.

Returns

Grid X coordinate of Ghost spawn

getGridSpawnY()

int GhostModel::getGridSpawnY ( ) const

nodiscard

Returns the Grid mapped Y coordinate of where the Ghost spawned.

Returns

Grid Y coordinate of Ghost spawn

getState()

GhostState GhostModel::getState ( ) const

nodiscard

Returns the current state of the Ghost.

Returns

GhostState

isFrightened()

bool GhostModel::isFrightened ( ) const

nodiscard

Returns whether the Ghost is currently frightened.

Returns

Frightened

move()

void GhostModel::move ( const World & world, float dt )

overridevirtual

This function is to be called in the World update loop. The Ghost will act based on it's current State and possibly move.

Whether the Ghost actually moves or not depends on its state. A GhostState::WAITING will not move until its cooldown runs out. Otherwise, it will move based on it's behaviour and whether it is frightened.

Parameters

world	World
dt	Deltatime since last call

Implements logic::MovingEntityModel.

pacmanCollides()

void GhostModel::pacmanCollides

(

World &

world

)

Tells the Ghost it collided with Pacman and should handle this situation.

Depending on whether the Ghost is frightened or not it will kill Pacman, or get killed.

Parameters

world

World

respawn()

void GhostModel::respawn ( )

overridevirtual

Tell the Ghost to respawn. It will go back to its spawnpoint and start in a GhostState::WAITING state again.

If the Ghost must respawn because of getting eaten while being frightened, it may instantly switch to a GhostState::EXITING without waiting for its cooldown to pass. If Pacman dies and the World resets, the Ghost will have to watch its cooldown again.

Implements logic::MovingEntityModel.

setFrightened()

void GhostModel::setFrightened	(	bool	frightened,
		const World &	world )

Allows the World to set toggle whether the Ghost is Frigthened or not.

Warning

Any change to the frightened state is ignored while a Ghost is dead.

Changes the Ghost's internal state and notifies Observers. Updates the Ghost speed to match its frightenedness. Updates the Ghost's internal pathing to either run away or re-target Pacman.

Parameters

frightened	True or False toggle
world	World

---

The documentation for this class was generated from the following files:

• Logic/Entities/Ghosts/GhostModel.h
• Logic/Entities/Ghosts/GhostModel.cpp
